MH 27

Designed for pylon racing model aircraft (FAI class F3D).

See also MH 23, MH 24, MH 25, MH 26, MH 28.

Characteristics

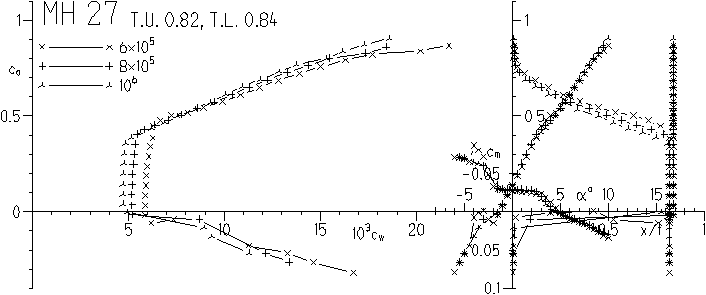

Calculated Polars (PROFIL/Eppler):

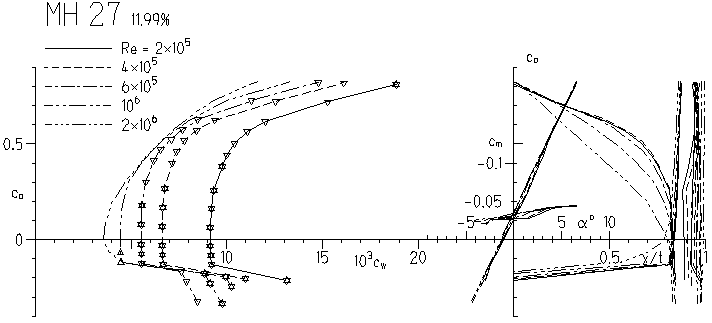

Calculated Polars (X-Foil/Drela):

All Polars in XML format

Coordinates in XML format

   x           y
  1.00000000  0.00000000
  0.99571520  0.00058599
  0.98395553  0.00317054
  0.96643186  0.00805747
  0.94421230  0.01463593
  0.91796571  0.02233068
  0.88818558  0.03054279
  0.85529895  0.03863330
  0.81933175  0.04589121
  0.78006805  0.05217030
  0.73770911  0.05769095
  0.69276997  0.06251127
  0.64571814  0.06657998
  0.59707351  0.06990379
  0.54738051  0.07242470
  0.49717719  0.07411522
  0.44700220  0.07492857
  0.39739254  0.07485367
  0.34887198  0.07385693
  0.30194424  0.07194567
  0.25709348  0.06911284
  0.21477403  0.06538736
  0.17540438  0.06078322
  0.13935004  0.05535946
  0.10694272  0.04918021
  0.07845951  0.04235095
  0.05413964  0.03498850
  0.03415342  0.02726114
  0.01864760  0.01938149
  0.00770890  0.01164516
  0.00190285  0.00517434
  0.00082903  0.00316506
  0.00018081  0.00130439
  0.00000364  0.00017361
  0.00009279 -0.00082226
  0.00052969 -0.00175607
  0.00129790 -0.00272626
  0.00293235 -0.00423585
  0.00508815 -0.00580795
  0.00593836 -0.00635887
  0.01719356 -0.01171349
  0.03366873 -0.01695866
  0.05517405 -0.02187453
  0.08153586 -0.02635800
  0.11251971 -0.03038274
  0.14780184 -0.03396403
  0.18695226 -0.03710479
  0.22951674 -0.03976194
  0.27500196 -0.04190602
  0.32292277 -0.04347012
  0.37279279 -0.04446501
  0.42406984 -0.04491264
  0.47616234 -0.04485172
  0.52847177 -0.04427557
  0.58039711 -0.04320850
  0.63134080 -0.04163737
  0.68071608 -0.03957671
  0.72796029 -0.03699090
  0.77254303 -0.03388729
  0.81392820 -0.03013320
  0.85195686 -0.02554222
  0.88662912 -0.02043718
  0.91746745 -0.01523863
  0.94417642 -0.01001220
  0.96669689 -0.00530630
  0.98437310 -0.00194796
  0.99593329 -0.00033203
  1.00000000  0.00000000
This airfoil has originally been published in [6].
