Schema <airfoil-schema.xsd>

Purpose:

description of arbitrary arrangements of aircraft wings

Schema location:  http://www.MH-AeroTools.de/airfoils/xml-schemas/airfoil-schema.xsd
This description:  http://www.MH-AeroTools.de/airfoils/xml-schemas/airfoil-schema.htm



Elements



Complex Types

airfoil  x    coordinatesType  rotationType
name  y    elementsType  scalingType
  z    elementType  transformationType
      pointType  translationType

element airfoil

diagram
children name elements


element airfoil/elements

diagram
type elementsType
children element
attributes
Name   Type   Use   Default   Fixed
count   xs:integer   optional


element name

diagram
type xs:string
used by
element  airfoil


element x

diagram
type xs:double
used by
complexType  pointType


element y

diagram
type xs:double
used by
complexType  pointType


element z

diagram
type xs:double
used by
complexType  pointType


complexType coordinatesType

diagram
children point
used by
element  elementType/coordinates
attributes
Name   Type   Use   Default   Fixed
count   xs:integer   optional


element coordinatesType/point

diagram
type pointType
children x y z
attributes
Name   Type   Use   Default   Fixed
id   xs:integer   optional


complexType elementsType

diagram
children element
used by
element  airfoil/elements
attributes
Name   Type   Use   Default   Fixed
count   xs:integer   optional

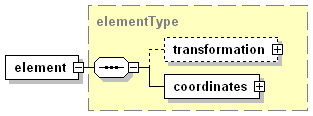

element elementsType/element

diagram
type elementType
children transformation coordinates
attributes
Name   Type   Use   Default   Fixed
id   xs:integer   optional


complexType elementType

diagram
children transformation coordinates
used by
element  elementsType/element
attributes
Name   Type   Use   Default   Fixed
id   xs:integer   optional

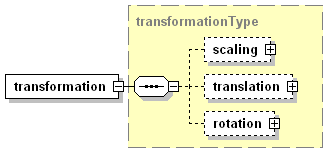

element elementType/transformation

diagram
type transformationType
children scaling translation rotation


element elementType/coordinates

diagram
type coordinatesType
children point
attributes
Name   Type   Use   Default   Fixed
count   xs:integer   optional


complexType pointType

diagram
children x y z
used by
elements  coordinatesType/point translationType/point rotationType/point scalingType/point
attributes
Name   Type   Use   Default   Fixed
id   xs:integer   optional


complexType rotationType

diagram
children point
used by
element  transformationType/rotation


element rotationType/point

diagram
type pointType
children x y z
attributes
Name   Type   Use   Default   Fixed
id   xs:integer   optional


complexType scalingType

diagram
children point
used by
element  transformationType/scaling


element scalingType/point

diagram
type pointType
children x y z
attributes
Name   Type   Use   Default   Fixed
id   xs:integer   optional

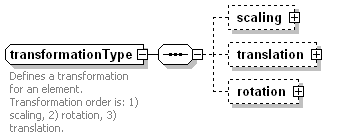

complexType transformationType

diagram
children scaling translation rotation
used by
element  elementType/transformation


element transformationType/scaling

diagram
type scalingType
children point


element transformationType/translation

diagram
type translationType
children point


element transformationType/rotation

diagram
type rotationType
children point


complexType translationType

diagram
children point
used by
element  transformationType/translation


element translationType/point

diagram
type pointType
children x y z
attributes
Name   Type   Use   Default   Fixed
id   xs:integer   optional
