Designed for racing model aircraft.
See also MH 23, MH 24, MH 25, MH 26, MH 27, MH 28.
not available

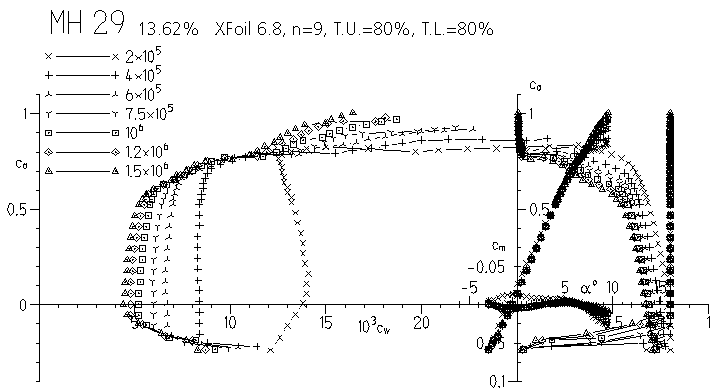

Image (6 kBytes)x y 1.000000 0.000000 0.954099 0.005092 0.915229 0.010376 0.880907 0.015928 0.849288 0.021756 0.819075 0.027813 0.789438 0.034013 0.759920 0.040236 0.730355 0.046352 0.700782 0.052224 0.671354 0.057728 0.642258 0.062763 0.613649 0.067261 0.585638 0.071183 0.558300 0.074517 0.531680 0.077273 0.505795 0.079477 0.480645 0.081171 0.456214 0.082402 0.432481 0.083222 0.409420 0.083680 0.387011 0.083824 0.365241 0.083689 0.344105 0.083305 0.323602 0.082695 0.303736 0.081874 0.284516 0.080854 0.265949 0.079641 0.248046 0.078240 0.230814 0.076652 0.214258 0.074879 0.198379 0.072923 0.183175 0.070784 0.168636 0.068466 0.154755 0.065974 0.141517 0.063315 0.128912 0.060496 0.116926 0.057531 0.105549 0.054434 0.094771 0.051222 0.084588 0.047917 0.074999 0.044546 0.066008 0.041138 0.057620 0.037724 0.049845 0.034339 0.042690 0.031015 0.036161 0.027787 0.030264 0.024683 0.024995 0.021730 0.020347 0.018950 0.016305 0.016359 0.012843 0.013963 0.009929 0.011764 0.007522 0.009756 0.005577 0.007926 0.004049 0.006259 0.002893 0.004734 0.002068 0.003330 0.001539 0.002024 0.001282 0.000790 0.001282 -0.000393 0.001539 -0.001546 0.002068 -0.002689 0.002893 -0.003837 0.004049 -0.005006 0.005577 -0.006204 0.007522 -0.007442 0.009929 -0.008726 0.012843 -0.010059 0.016305 -0.011441 0.020347 -0.012871 0.024995 -0.014344 0.030264 -0.015854 0.036161 -0.017391 0.042690 -0.018945 0.049845 -0.020508 0.057620 -0.022068 0.066008 -0.023619 0.074999 -0.025152 0.084588 -0.026665 0.094771 -0.028154 0.105549 -0.029623 0.116926 -0.031078 0.128912 -0.032525 0.141517 -0.033974 0.154755 -0.035432 0.168636 -0.036905 0.183175 -0.038398 0.198379 -0.039910 0.214258 -0.041435 0.230814 -0.042961 0.248046 -0.044470 0.265949 -0.045935 0.284516 -0.047327 0.303736 -0.048613 0.323602 -0.049758 0.344105 -0.050732 0.365241 -0.051504 0.387011 -0.052049 0.409420 -0.052349 0.432481 -0.052396 0.456214 -0.052190 0.480645 -0.051740 0.505795 -0.051060 0.531680 -0.050165 0.558300 -0.049072 0.585638 -0.047790 0.613649 -0.046325 0.642258 -0.044670 0.671354 -0.042806 0.700782 -0.040695 0.730355 -0.038286 0.759920 -0.035509 0.789438 -0.032291 0.819075 -0.028552 0.849288 -0.024220 0.880907 -0.019233 0.915229 -0.013545 0.954099 -0.007132 1.000000 0.000000
