MH 33

Designed for electric powered pylon racing model aircraft (FAI class F5D).
Can also be used for F3B and similar models.

Characteristics

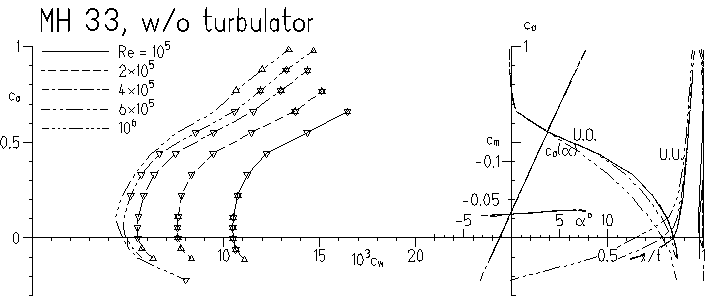

Calculated Polars (PROFIL/Eppler):

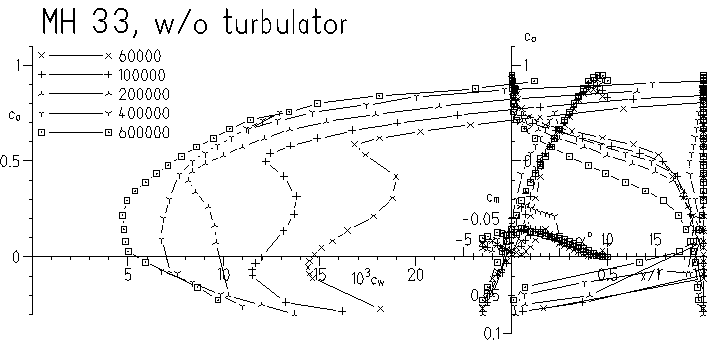

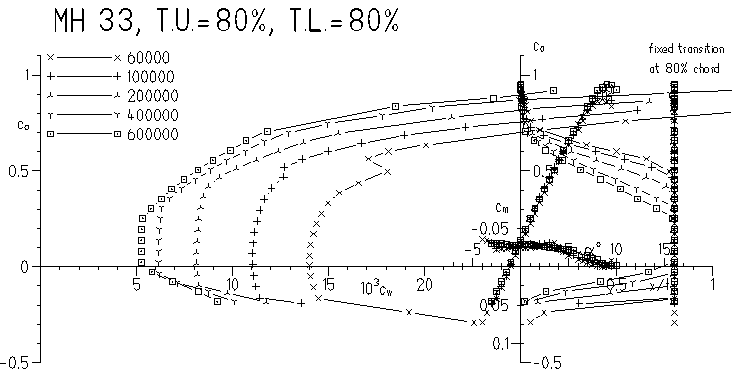

Calculated Polars (X-Foil/Drela):

All Polars in XML format

Coordinates in XML format

   x       y
100.000   0.000
 99.677   0.029
 98.727   0.125
 97.194   0.302
 95.125   0.558
 92.567   0.881
 89.564   1.246
 86.150   1.634
 82.361   2.028
 78.231   2.416
 73.804   2.795
 69.129   3.160
 64.259   3.503
 59.247   3.815
 54.149   4.089
 49.020   4.320
 43.914   4.500
 38.888   4.623
 33.993   4.684
 29.281   4.678
 24.801   4.601
 20.596   4.449
 16.706   4.221
 13.167   3.917
 10.009   3.539
  7.258   3.092
  4.934   2.584
  3.048   2.025
  1.611   1.435
  0.623   0.838
  0.091   0.281
  0.034   0.165
  0.000   0.047
  0.002  -0.054
  0.052  -0.148
  0.147  -0.246
  0.654  -0.574
  1.761  -1.005
  3.359  -1.405
  5.440  -1.756
  7.993  -2.048
 10.997  -2.280
 14.429  -2.449
 18.256  -2.558
 22.440  -2.612
 26.940  -2.614
 31.708  -2.569
 36.693  -2.485
 41.841  -2.367
 47.093  -2.222
 52.390  -2.056
 57.671  -1.875
 62.877  -1.684
 67.944  -1.490
 72.813  -1.294
 77.427  -1.102
 81.728  -0.912
 85.667  -0.723
 89.207  -0.530
 92.320  -0.344
 94.970  -0.186
 97.112  -0.073
 98.694  -0.014
 99.670  -0.001
100.000   0.000
This airfoil has not yet been published in paper form (4.1.1997).
