MH 42

Designed for allround RC-gliders (e.g. FAI class F3B)
Has been used on the sailplane Wizard.

Characteristics

• Thickness: 8.94%
• Moment coefficient of cm c/4 = -0.0235.
• Well suited for 23% chord flaps, 0° ... 10° deflection.
• Can be used at Reynolds numbers of 100'000 and above,
  for lower Reynolds numbers, a turbulator at x/c=40% of the upper surface is recommended.

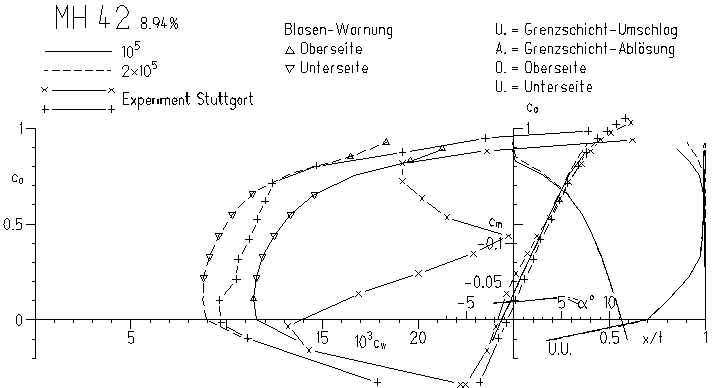

Calculated (PROFIL/Eppler) and Measured (Stuttgart) Polars:

• Image (7 kBytes)

Calculated Polars (X-Foil/Drela):

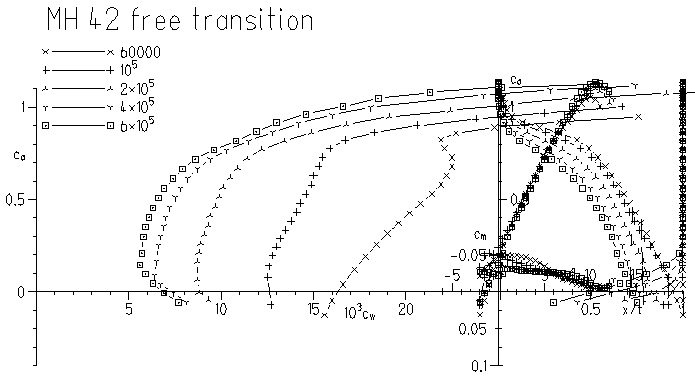

• Image (6 kBytes) - free transition

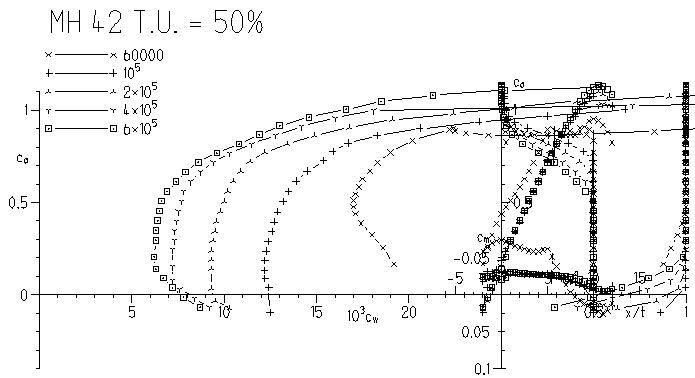

• Image (6 kBytes) - fixed transition on upper surface at 50%
• Listing in PEF format

All Polars in XML format

Coordinates in XML format

  x        y
100.000  0.000
99.672  0.020
98.704  0.092
97.125  0.236
94.974  0.461
92.294  0.770
89.133  1.160
85.546  1.625
81.587  2.150
77.311  2.719
72.776  3.317
68.039  3.924
63.160  4.520
58.197  5.080
53.203  5.576
48.221  5.987
43.291  6.296
38.456  6.495
33.754  6.576
29.226  6.540
24.909  6.387
20.841  6.121
17.057  5.749
13.590  5.280
10.470  4.722
7.724  4.091
5.372  3.398
3.433  2.662
1.918  1.903
0.832  1.150
0.184  0.450
0.000  0.000
0.012  -0.104
0.417  -0.563
1.410  -1.022
2.911  -1.450
4.902  -1.826
7.364  -2.133
10.283  -2.357
13.649  -2.499
17.434  -2.571
21.598  -2.585
26.096  -2.549
30.876  -2.469
35.884  -2.351
41.065  -2.200
46.360  -2.023
51.709  -1.828
57.052  -1.620
62.324  -1.404
67.468  -1.186
72.424  -0.972
77.135  -0.770
81.543  -0.588
85.590  -0.430
89.223  -0.300
92.394  -0.198
95.058  -0.122
97.178  -0.068
98.732  -0.030
99.675  -0.007
100.000  0.000
