Designed for man carrying hang gliders
Airfoils for Tailless
Airplanes: Design and Selection
 |

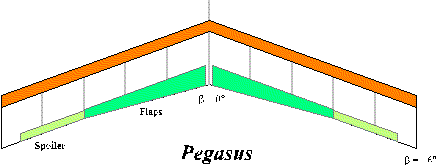

This only an approximate sketch - you are not encouraged to build your own glider just from this picture! |

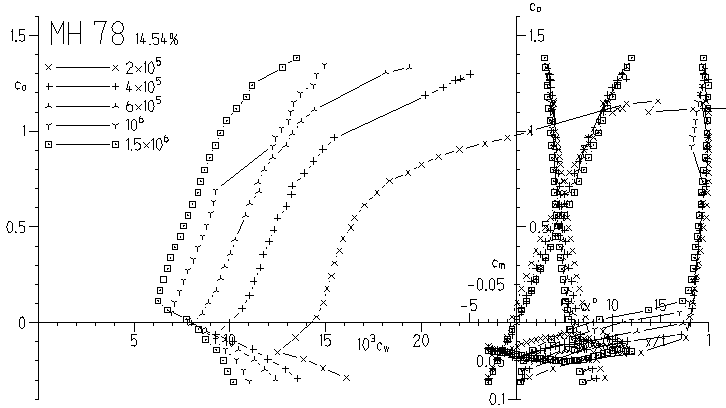

Image (9 kBytes) - free transition, smooth surface

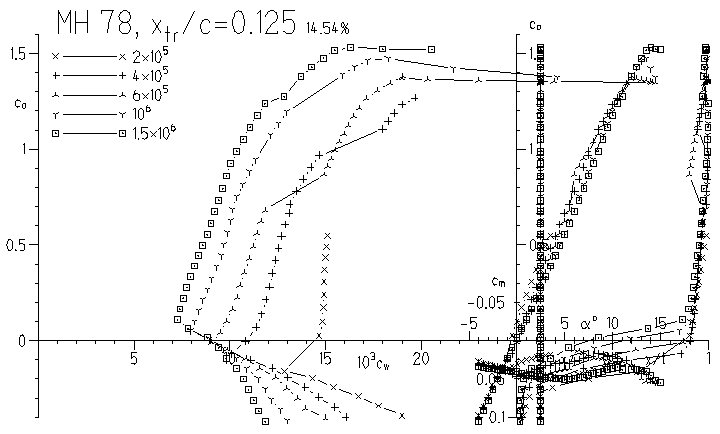

Image (10 kBytes) -
transition at x/c=0.125x y 100.000 0.000 99.647 -0.006 98.594 -0.007 96.858 0.029 94.468 0.131 91.470 0.321 87.917 0.617 83.875 1.029 79.414 1.560 74.611 2.204 69.547 2.950 64.300 3.779 58.950 4.663 53.576 5.574 48.244 6.476 43.022 7.336 37.969 8.117 33.135 8.786 28.564 9.311 24.294 9.664 20.358 9.823 16.782 9.760 13.568 9.448 10.701 8.892 8.177 8.107 5.981 7.122 4.107 5.990 2.574 4.762 1.399 3.471 0.580 2.157 0.109 0.883 0.000 -0.268 0.332 -1.153 1.263 -1.825 2.821 -2.441 4.915 -3.006 7.501 -3.508 10.541 -3.936 14.009 -4.271 17.885 -4.514 22.131 -4.681 26.696 -4.780 31.526 -4.817 36.564 -4.796 41.751 -4.720 47.027 -4.593 52.329 -4.418 57.599 -4.199 62.773 -3.937 67.791 -3.635 72.596 -3.293 77.133 -2.906 81.366 -2.464 85.277 -1.982 88.837 -1.490 92.008 -1.026 94.736 -0.628 96.964 -0.323 98.623 -0.125 99.651 -0.026 100.000 0.000
Last update of this page: August, 13, 1996
Last modification of this page: 21.05.18
