We have already learned, that several parameters, linked closely together, have an influence on the design of a low moment, high lift airfoil. We have not yet talked about the additional problems, introduced by the behavior of the boundary layer.

Problems facing the designer of an airfoil for tailless airplanes.

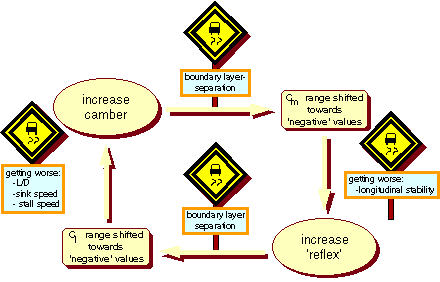

The Figure above and the enumeration below show the most important parameters and how they are linked together.

• Moving the maximum camber towards the leading edge
  + more stable moment coefficient (more positive).
  - puts more stress on the boundary layer near the leading edge (suction peaks).
• Increasing the amount of camber
  + better lift (Cl vs. Cd shifts towards positive Cl values).
  + Cl-max may be increased.
  - less stable moment coefficient (more negative).
  - puts more stress on the boundary layer (more pressure drop towards the trailing edge).
• Increasing the amount of reflex
  + more stable moment coefficient (more positive).
  - less lift (Cl vs. Cd shifts towards negative Cl values).
  - Cl-max decreases.
