Designed for the inboard region of propellers, between MH 112 and MH 114
see also MH 126, MH 112, MH 113, MH 114, MH 115, MH 116, MH 117, MH 120, MH 121

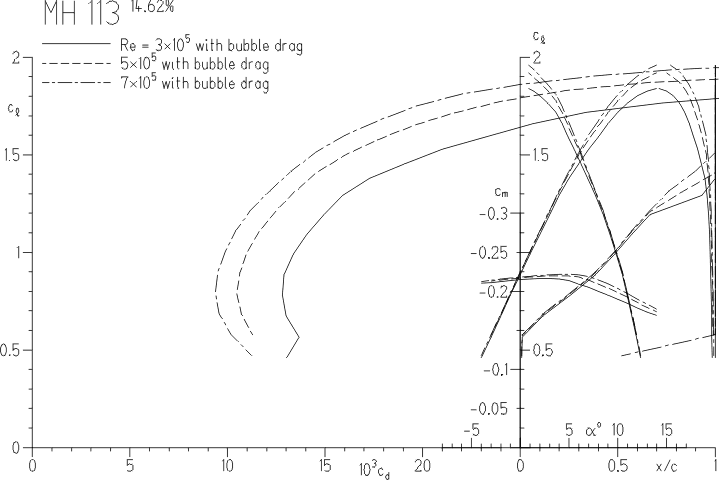

Image ( 5 kBytes)

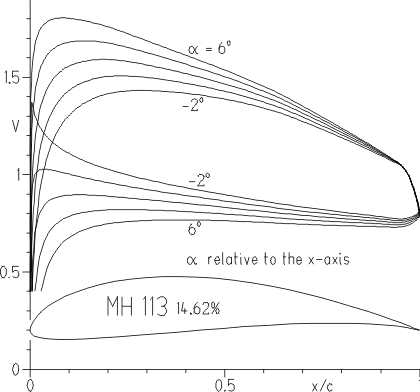

Image (7 kBytes)
x y 1.00000000 0.00000000 0.99657911 0.00129859 0.98693705 0.00520599 0.97212357 0.01135726 0.95257144 0.01898648 0.92829218 0.02772077 0.89956132 0.03753655 0.86691136 0.04827937 0.83087727 0.05966726 0.79197587 0.07136829 0.75069934 0.08303447 0.70752493 0.09431152 0.66290785 0.10483599 0.61722787 0.11424445 0.57079623 0.12228128 0.52396079 0.12878840 0.47709646 0.13364568 0.43058995 0.13677292 0.38483958 0.13811951 0.34024152 0.13766085 0.29718995 0.13539236 0.25604833 0.13132100 0.21714499 0.12549098 0.18077094 0.11797452 0.14716671 0.10890207 0.11656500 0.09846885 0.08919680 0.08689463 0.06526129 0.07441188 0.04491583 0.06128609 0.02828712 0.04781828 0.01547607 0.03434589 0.00654829 0.02121442 0.00144037 0.00885691 0.00009164 -0.00197262 0.00326044 -0.00986391 0.01232056 -0.01515340 0.02750123 -0.01912951 0.04823829 -0.02180405 0.07429146 -0.02316140 0.10544287 -0.02324596 0.14142733 -0.02214665 0.18192638 -0.01998599 0.22655720 -0.01692333 0.27486968 -0.01313926 0.32634580 -0.00883033 0.38042147 -0.00418990 0.43649054 0.00056375 0.49390135 0.00520970 0.55196243 0.00949915 0.60991651 0.01318332 0.66695052 0.01602203 0.72218249 0.01781699 0.77468331 0.01845890 0.82354878 0.01794965 0.86791482 0.01636346 0.90699372 0.01386781 0.94006831 0.01063360 0.96634857 0.00693486 0.98515215 0.00341917 0.99631237 0.00090458 1.00000000 0.00000000
Last modification of this page: 21.05.18
