Designed for man carrying paragliders, but can also be used in
kites of the Flexifoil™ type,
see also MH 91, MH 92,
MH 93,
for the movement of the stagnation point see MH 92.

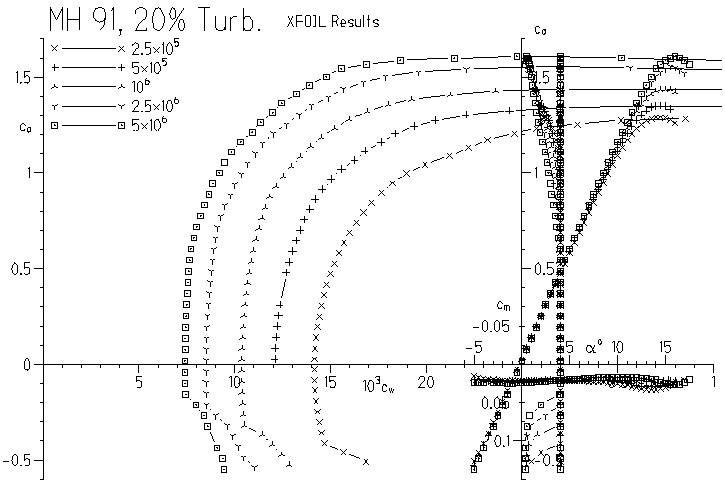

Image (10 kBytes) - fixed
transition at x/c=0.2x y 1.00000000 0.00000000 0.99896431 -0.00001484 0.99586465 -0.00002332 0.99072419 0.00004514 0.98358185 0.00025259 0.97449085 0.00065386 0.96351724 0.00129572 0.95073847 0.00221637 0.93624162 0.00344484 0.92012183 0.00500088 0.90248040 0.00689483 0.88342332 0.00912808 0.86305965 0.01169337 0.84150019 0.01457572 0.81885628 0.01775303 0.79523884 0.02119721 0.77075750 0.02487496 0.74552005 0.02874896 0.71963189 0.03277862 0.69319577 0.03692121 0.66631152 0.04113251 0.63907599 0.04536779 0.61158298 0.04958230 0.58392332 0.05373210 0.55618485 0.05777436 0.52845260 0.06166798 0.50080886 0.06537382 0.47333329 0.06885506 0.44610306 0.07207742 0.41919294 0.07500921 0.39267543 0.07762160 0.36662078 0.07988835 0.34109723 0.08178625 0.31617089 0.08329425 0.29190603 0.08439438 0.26836502 0.08506974 0.24560861 0.08530634 0.22369613 0.08508802 0.20268591 0.08440031 0.18263434 0.08320486 0.16353673 0.08146336 0.14538439 0.07921373 0.12822914 0.07649334 0.11211563 0.07329995 0.09706136 0.06963142 0.08306857 0.06549186 0.07010703 0.06090343 0.05815388 0.05595363 0.04724931 0.05073029 0.03743922 0.04529467 0.02879051 0.03968461 0.02132123 0.03387713 0.01496573 0.02790411 0.00968743 0.02188157 0.00550584 0.01592821 0.00244803 0.01016041 0.00058606 0.00470867 0.00000335 -0.00033941 0.00077671 -0.00475522 0.00342961 -0.00860854 0.00812138 -0.01235353 0.01448474 -0.01613866 0.02240296 -0.01992660 0.03180018 -0.02368700 0.04261875 -0.02739189 0.05480477 -0.03101651 0.06830709 -0.03453730 0.08307307 -0.03793190 0.09904923 -0.04117858 0.11617945 -0.04425505 0.13440563 -0.04713922 0.15366748 -0.04980106 0.17392245 -0.05221088 0.19512787 -0.05436446 0.21721771 -0.05626333 0.24011798 -0.05789603 0.26375302 -0.05924779 0.28804866 -0.06027911 0.31298681 -0.06095699 0.33853962 -0.06132351 0.36461790 -0.06141516 0.39113229 -0.06124252 0.41799241 -0.06081432 0.44510698 -0.06013312 0.47238368 -0.05919303 0.49974925 -0.05797639 0.52715405 -0.05649078 0.55452717 -0.05477401 0.58177221 -0.05285316 0.60879261 -0.05074214 0.63549188 -0.04844673 0.66178087 -0.04596057 0.68758986 -0.04326929 0.71287811 -0.04037229 0.73760689 -0.03730414 0.76171689 -0.03411101 0.78514211 -0.03083683 0.80781317 -0.02752794 0.82965702 -0.02423179 0.85059668 -0.02099710 0.87055096 -0.01787209 0.88943436 -0.01490355 0.90715706 -0.01213490 0.92362506 -0.00960320 0.93874638 -0.00733640 0.95243304 -0.00536238 0.96458887 -0.00370786 0.97511056 -0.00238457 0.98389783 -0.00138673 0.99085710 -0.00069324 0.99590470 -0.00026736 0.99897046 -0.00005814 1.00000000 0.00000000
