Designed for pylon racing model aircraft (FAI class F3D)

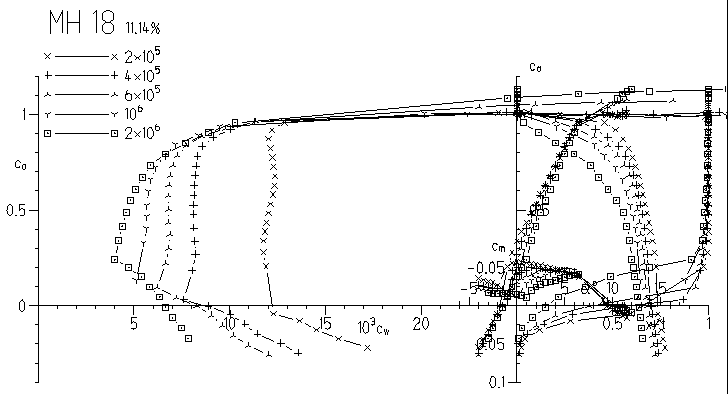

Image (7 kBytes)

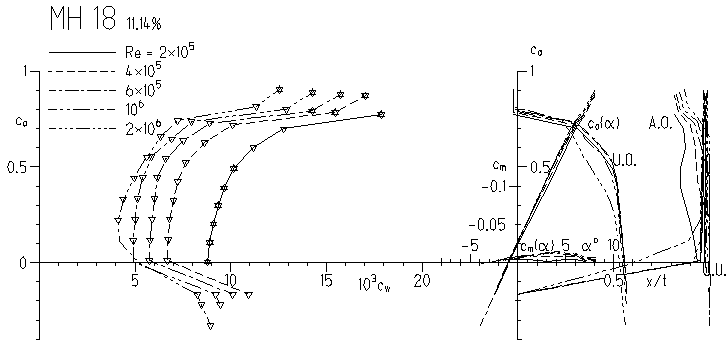

Image (9 kBytes)x y 1.00000000 0.00000000 0.99641612 -0.00002507 0.98568442 0.00017532 0.96798792 0.00122548 0.94390264 0.00371768 0.91434811 0.00790159 0.88021535 0.01363898 0.84225727 0.02066581 0.80117125 0.02866143 0.75759887 0.03726667 0.71213267 0.04610808 0.66532610 0.05481464 0.61770563 0.06304091 0.56985066 0.07039094 0.52213148 0.07626608 0.47449168 0.08032624 0.42698074 0.08275117 0.38003715 0.08379475 0.33419752 0.08352664 0.28994684 0.08196650 0.24771896 0.07910980 0.20787901 0.07499041 0.17076098 0.06967181 0.13664587 0.06327118 0.10581259 0.05595576 0.07852519 0.04791337 0.05501782 0.03933457 0.03545635 0.03045771 0.02000670 0.02158339 0.00881186 0.01306906 0.00206748 0.00538847 0.00092298 0.00329691 0.00021665 0.00141327 0.00000953 0.00027737 0.00007301 -0.00071624 0.00048234 -0.00164333 0.00121501 -0.00260352 0.00278078 -0.00408775 0.00485251 -0.00561460 0.01511210 -0.01059202 0.03051630 -0.01516893 0.05095935 -0.01907373 0.07633892 -0.02224615 0.10647490 -0.02467282 0.14113183 -0.02639251 0.17999376 -0.02748541 0.22265880 -0.02805801 0.26863463 -0.02821517 0.31736769 -0.02804072 0.36824543 -0.02759227 0.42065626 -0.02687788 0.47399254 -0.02592580 0.52763713 -0.02475532 0.58096932 -0.02340049 0.63337191 -0.02187991 0.68423783 -0.02022639 0.73297653 -0.01845619 0.77902077 -0.01659925 0.82183215 -0.01466757 0.86090764 -0.01268637 0.89578347 -0.01065697 0.92604144 -0.00859445 0.95130318 -0.00642146 0.97149797 -0.00403818 0.98672845 -0.00180657 0.99655036 -0.00041174 1.00000000 0.00000000This airfoil has originally been published in [4].
