Designed for pylon racing model aircraft (FAI class F3D)

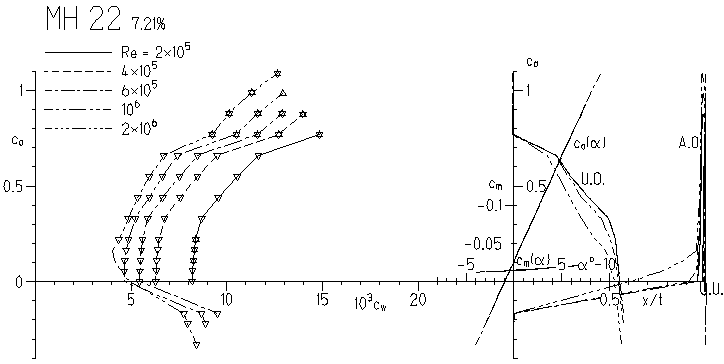

Image (7 kBytes)x y 1.00000000 0.00000000 0.99679155 0.00013675 0.98733295 0.00067257 0.97198580 0.00174337 0.95107411 0.00330160 0.92485052 0.00532979 0.89365096 0.00788451 0.85793159 0.01100431 0.81820263 0.01467336 0.77502706 0.01886518 0.72901193 0.02351081 0.68080702 0.02852616 0.63110026 0.03379639 0.58071248 0.03913542 0.53038538 0.04400422 0.48035640 0.04786635 0.43072104 0.05067633 0.38190687 0.05259463 0.33446347 0.05361697 0.28888361 0.05369606 0.24560019 0.05275831 0.20496816 0.05078039 0.16730827 0.04777110 0.13288325 0.04380250 0.10195888 0.03900116 0.07478573 0.03350987 0.05158008 0.02747666 0.03248437 0.02109469 0.01764180 0.01463882 0.00718395 0.00841551 0.00240606 0.00426407 0.00116783 0.00270237 0.00035054 0.00128154 0.00005746 0.00043355 0.00002852 -0.00029509 0.00033344 -0.00097346 0.00094593 -0.00168768 0.00230626 -0.00280280 0.00414045 -0.00397511 0.00616717 -0.00507777 0.01685431 -0.00897050 0.03248253 -0.01239559 0.05302498 -0.01515289 0.07843283 -0.01719338 0.10854412 -0.01853642 0.14314411 -0.01923278 0.18192732 -0.01938797 0.22450229 -0.01911882 0.27038279 -0.01855180 0.31901963 -0.01777703 0.36980328 -0.01686904 0.42212370 -0.01583655 0.47537514 -0.01471928 0.52894156 -0.01353240 0.58220369 -0.01231682 0.63454507 -0.01108285 0.68535966 -0.00986547 0.73405747 -0.00866901 0.78007210 -0.00752067 0.82286580 -0.00641773 0.86193649 -0.00537779 0.89682206 -0.00438763 0.92710650 -0.00345133 0.95242177 -0.00251062 0.97258094 -0.00151225 0.98749078 -0.00062085 0.99680701 -0.00012484 1.00000000 0.00000000This airfoil has originally been published in [4].
