Designed for the inboard region of stall controlled, horizontal
axis windmills.
See also MH 102, MH 104,
MH 106, MH 108,
MH 110, and
Airfoils for windmills.

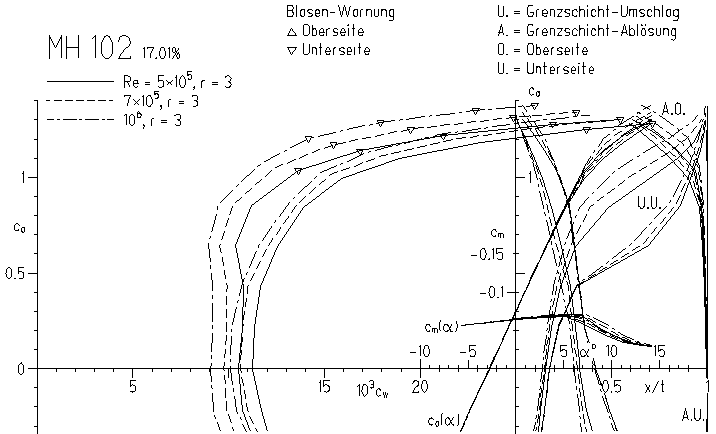

Image (8 kBytes) (smooth
versus rough)x y 1.00000000 0.00000000 0.99614983 0.00063728 0.98520565 0.00282240 0.96830620 0.00663188 0.94602565 0.01147142 0.91839872 0.01707581 0.88572075 0.02361176 0.84861962 0.03110739 0.80774299 0.03943785 0.76375323 0.04841341 0.71730911 0.05779135 0.66905176 0.06728927 0.61959790 0.07661096 0.56953125 0.08544960 0.51940362 0.09351302 0.46973112 0.10052213 0.42099874 0.10622572 0.37366109 0.11040973 0.32820037 0.11284147 0.28491185 0.11316925 0.24380784 0.11130183 0.20506012 0.10746400 0.16901281 0.10181653 0.13594111 0.09447235 0.10608263 0.08559329 0.07964163 0.07536521 0.05678511 0.06401791 0.03764823 0.05182014 0.02233251 0.03908978 0.01090201 0.02621339 0.00343089 0.01372124 0.00081810 0.00624945 0.00020021 0.00293804 0.00000082 -0.00018316 0.00011982 -0.00213265 0.00049708 -0.00393552 0.00120839 -0.00566457 0.00224072 -0.00741951 0.00426419 -0.01009532 0.00680138 -0.01281177 0.01050141 -0.01613427 0.02399365 -0.02525514 0.04201295 -0.03405036 0.06417737 -0.04212709 0.09020108 -0.04904123 0.11995663 -0.05434164 0.15349856 -0.05770634 0.19094712 -0.05910127 0.23224820 -0.05877018 0.27709212 -0.05700227 0.32507665 -0.05405209 0.37570590 -0.05021288 0.42839057 -0.04576400 0.48243404 -0.04098262 0.53707390 -0.03601968 0.59162389 -0.03098315 0.64540959 -0.02601644 0.69772762 -0.02126360 0.74788348 -0.01683072 0.79520092 -0.01281888 0.83902670 -0.00929883 0.87873741 -0.00633322 0.91374386 -0.00395207 0.94349459 -0.00217278 0.96747412 -0.00097467 0.98520055 -0.00030404 0.99622182 -0.00005550 1.00000000 0.00000000
