Designed for the 60% radius station of stall controlled,
horizontal axis windmills.
See also MH 102, MH 104,
MH 106, MH 108,
MH 110, and
Airfoils for windmills.

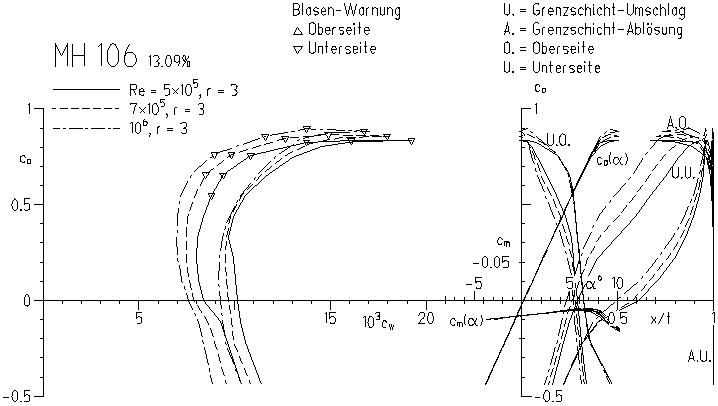

Image (8 kBytes) (smooth
versus rough)x y 1.00000000 0.00000000 0.99633896 0.00013538 0.98572712 0.00081905 0.96892525 0.00231554 0.94642367 0.00436480 0.91836006 0.00685652 0.88503080 0.00997739 0.84699594 0.01384794 0.80487420 0.01847791 0.75933341 0.02382341 0.71107117 0.02978175 0.66080012 0.03620038 0.60923092 0.04288363 0.55705830 0.04960002 0.50494863 0.05609305 0.45352913 0.06209195 0.40338113 0.06731599 0.35503575 0.07151328 0.30907144 0.07437120 0.26580358 0.07534795 0.22506456 0.07420479 0.18681819 0.07124411 0.15136966 0.06678403 0.11904212 0.06102631 0.09013672 0.05417502 0.06493704 0.04641532 0.04366599 0.03792242 0.02646761 0.02891578 0.01345480 0.01968641 0.00469764 0.01063397 0.00188777 0.00623331 0.00081003 0.00381469 0.00016743 0.00154754 0.00000165 0.00014605 0.00010756 -0.00112503 0.00055967 -0.00234500 0.00133663 -0.00361403 0.00297835 -0.00558815 0.00513535 -0.00763363 0.00962388 -0.01106732 0.02257288 -0.01833048 0.04024689 -0.02560254 0.06232892 -0.03260747 0.08853194 -0.03907257 0.11858805 -0.04471630 0.15229113 -0.04928617 0.18946321 -0.05259526 0.22996674 -0.05458014 0.27356298 -0.05533977 0.31988227 -0.05499133 0.36851477 -0.05367172 0.41896127 -0.05156813 0.47063693 -0.04884164 0.52291335 -0.04562226 0.57515779 -0.04198170 0.62679552 -0.03799545 0.67724636 -0.03378661 0.72590864 -0.02947190 0.77219558 -0.02515173 0.81554287 -0.02092181 0.85541258 -0.01687058 0.89129875 -0.01307891 0.92273025 -0.00962032 0.94927172 -0.00653679 0.97060783 -0.00384979 0.98649788 -0.00172690 0.99652470 -0.00043016 1.00000000 0.00000000
